ALPHA 100J - EMTT03

LPMS

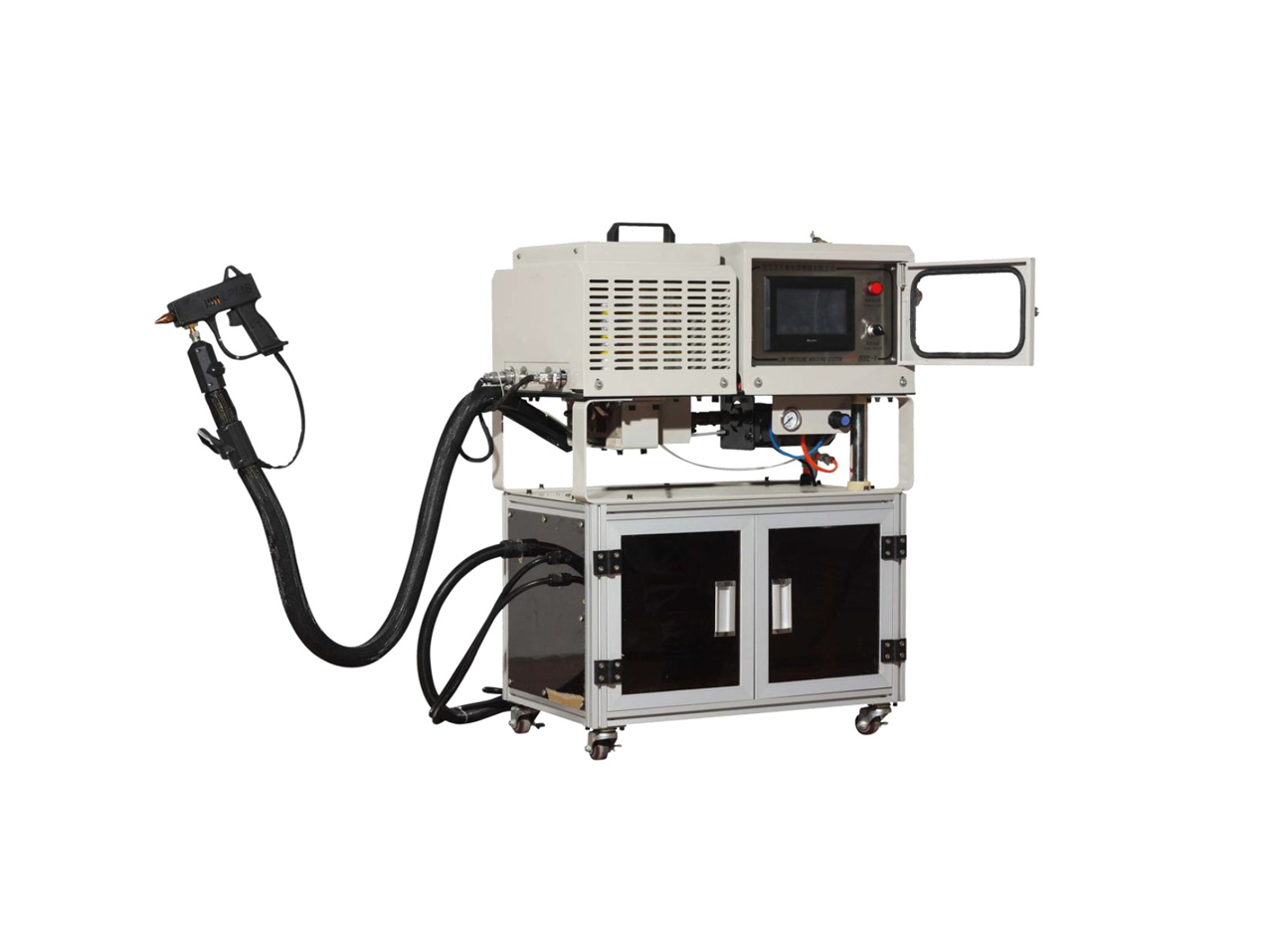

Alpha 100J with MTS 05 melting tank

The Alpha 100J with melting tank is a unit designed for low to medium volume, high mix applications where versatility is the key. The handheld gun allows application of hotmelt into different tools or enclosures concurrently.

Applications include PCBA encapsulation, wire and cable harnesses, connector over moulding, fibre optics etc.



Operating temperature Ambient up to 230°C

Melting Tank 3L

Electrical connection 200~240VAC / 1 Phase / 50Hz

Footprint 1760mm x 400mm

Mould set size 100mm x 80mm x 60mm

Max Mould Set Size Depends on part design
