BETA 300

LPMS

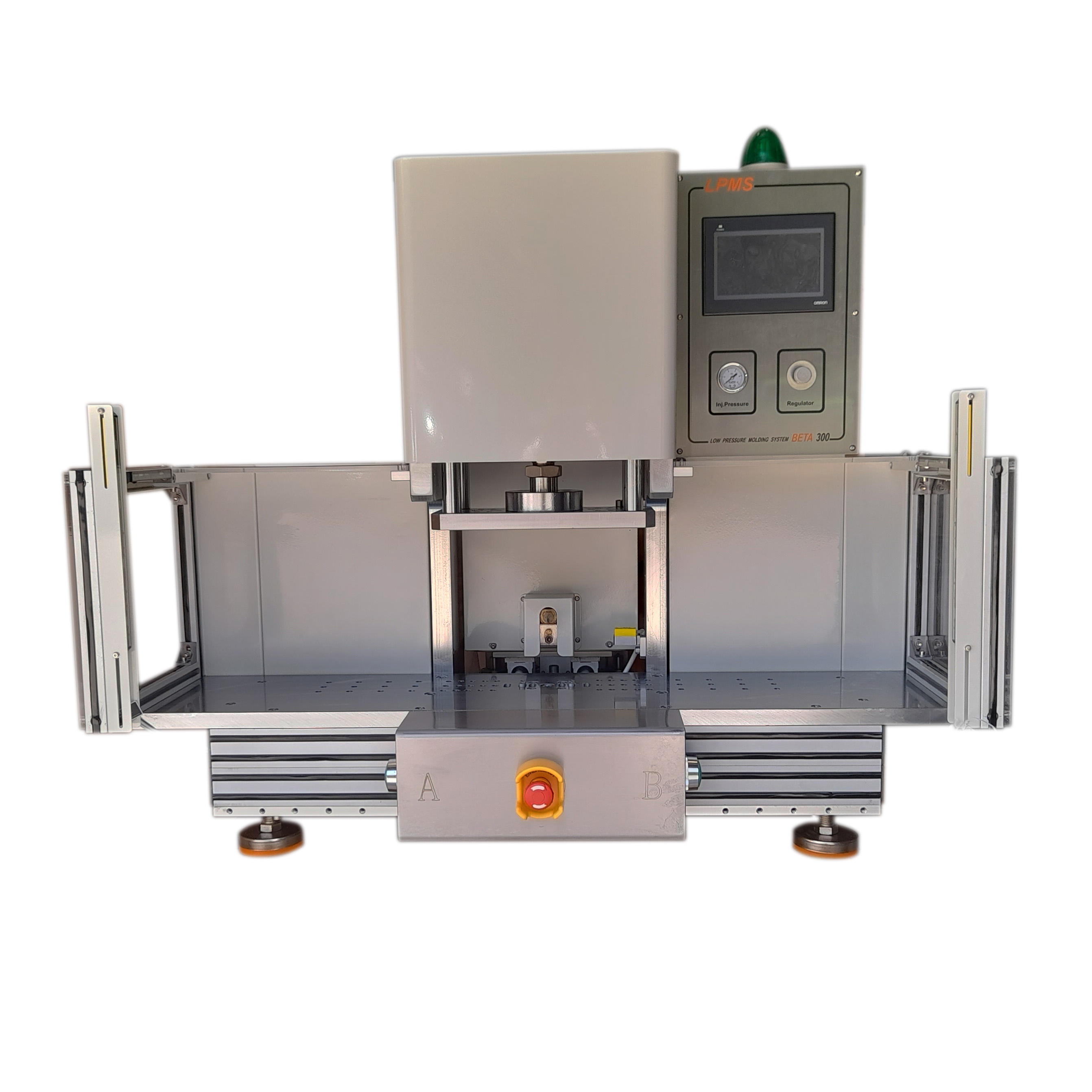

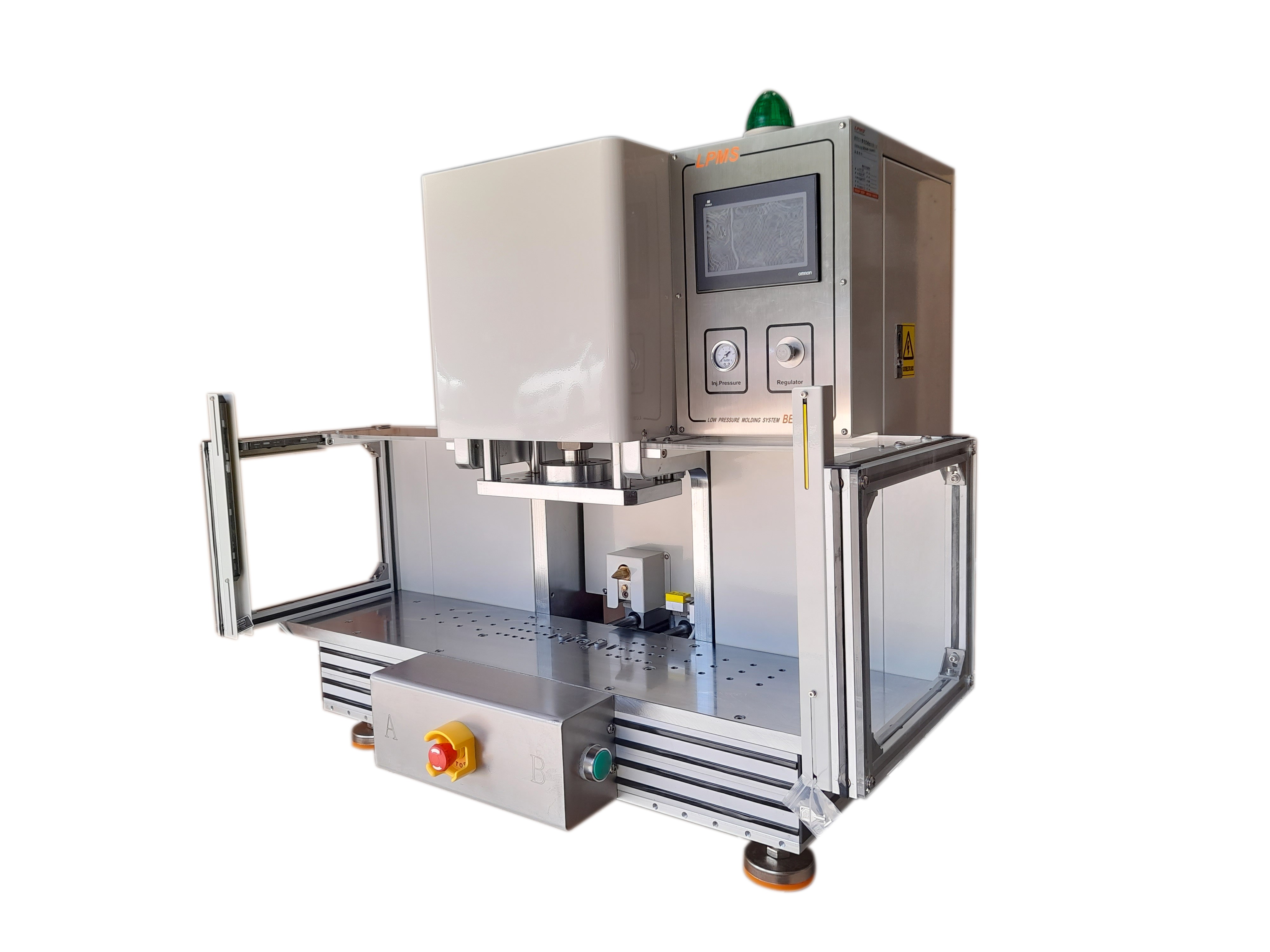

The Beta 300 is a high-volume production capable machine that comes in a small footprint, which can be inserted into any production line. The integrated 7L Melt-on-Demand tank, and advanced safety features makes it perfect for local manufacturing.

Additional options of 2 tonne clamping force and enlarged work area can enable the Beta 300 to increase its capability even further, performing to the level of more advanced equipment.





Operating temperature Ambient up to 250°C

Melting Tank Melt on demand 7L x 1

Clamping force 1.2T

Electrical connection 200~240VAC / 1 Phase / 50Hz

Power input 5 kW

Min air pressure 0.5 MPa / 73 Psi

Footprint 740mm x 950mm

Mould set size 180mm x 100mm x 150mm / 16kg

Max Mould Set Size 250mm x 120mm x 150mm
