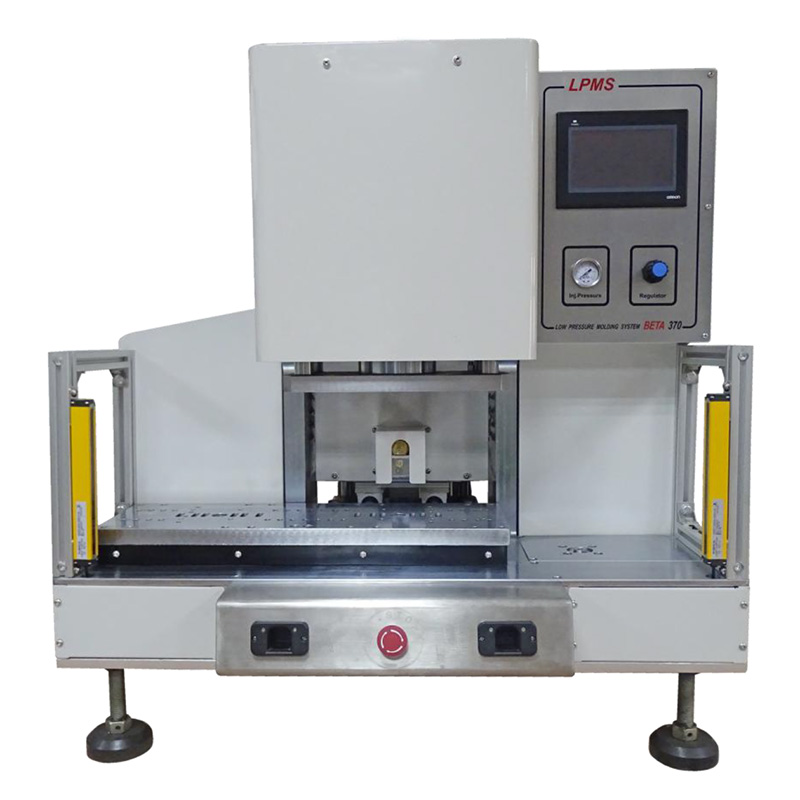

BETA 370



The Beta 370 is a table top, shuttle table machine which allows high volume production. This machine offers the best of both worlds, with increased throughput capability, coupled with a small footprint.

Additional guarding and safety features are provided to ensure ease of use and operator safety. This machine is particularly suitable for high volume producers of a single part.


Operating temperature Ambient up to 250°C

Melting Tank 7L x 1

Clamping force 1.25T

Electrical connection 200~240VAC / 1 Phase / 50Hz

Power input 4.5kW

Min air pressure 0.5 MPa / 73 Psi

Footprint 990mm x 874mm

Mould set size 180mm x 100mm x 150mm / 16kg

Max Mould Set Size 250mm x 120mm x 150mm
