Vertical injection machines are perfect for producing high volumes of small parts. The design enables tooling to be split into multiple cavities, with minimal runner used. The integration of a hot runner is also possible.

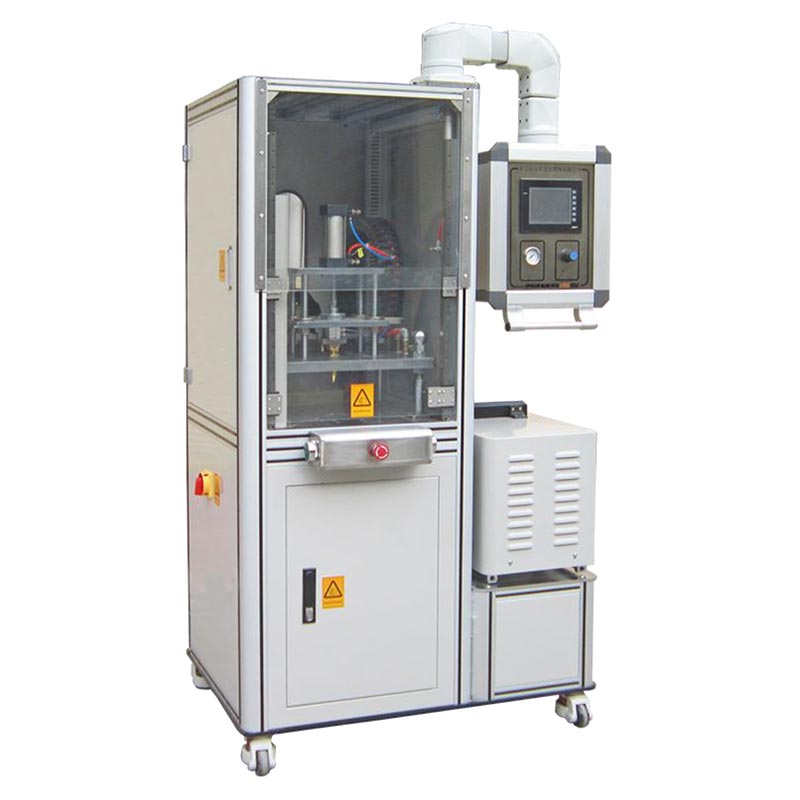

The Beta 800A has a reduced footprint due to its unique design, having the tank to the side, and touch panel suspended above.
Operating temperature Ambient up to 250°C
Melting Tank Melt on demand 7L x 1
Clamping force 1.2T
Electrical connection 200~240VAC / 1 Phase / 50Hz
Power input 4.5 kW
Min air pressure 0.5MPa / 73 Psi
Footprint 1070mm x 865mm
Mould set size 230mm x 120mm x 150mm / 25kg
